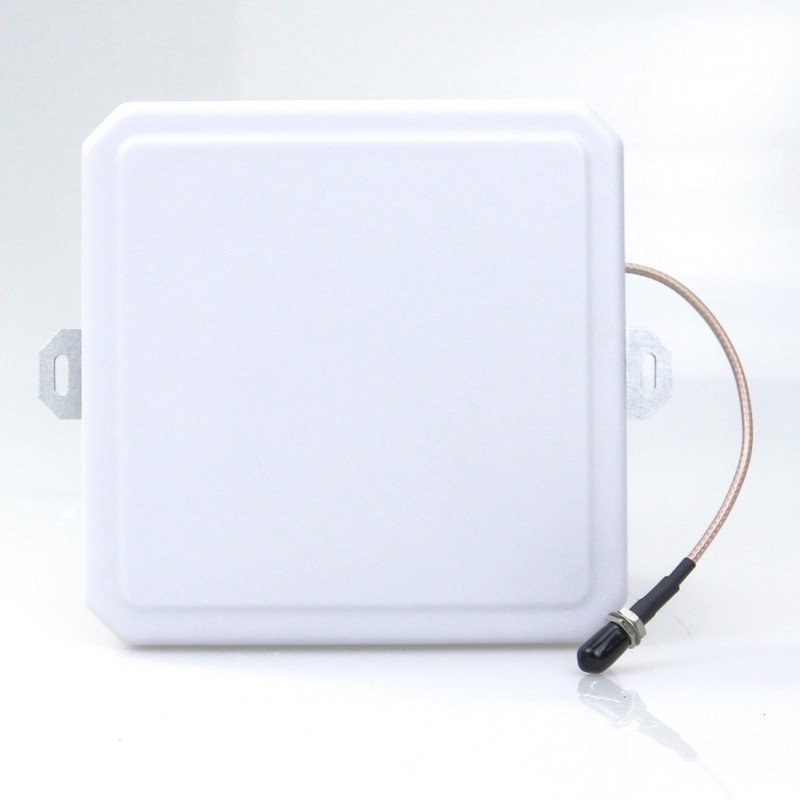

The Waterproof Outdoor Long Range 5dBi Circular Polarization UHF RFID Reader Antenna is a high-performance antenna designed to enhance the read range and reliability of UHF RFID systems. This antenna features a 5dBi gain and circular polarization, ensuring consistent tag reading regardless of tag orientation. Its rugged, weatherproof design makes it ideal for outdoor and industrial applications.

Operating in the global UHF frequency bands of 865-868 MHz (ETSI) and 902-928 MHz (FCC), this antenna is fully compatible with ISO 18000-6C and EPC Class 1 Gen 2 protocols. The antenna is enclosed in a durable ABS housing and features an IP65 or IP53 waterproof rating, ensuring reliable performance in various weather conditions.

Key Features & Specifications:

• Open SDK

•

  Reading Distance: 5-6 m, 3-5 cm, 0-3m, Up To 8 cm

• 5dBi Gain: High gain for extended read range and improved signal strength

• Circular Polarization: Ensures reliable tag reading regardless of tag orientation

• Global Frequency Support: Operates on 865-868 MHz and 902-928 MHz bands

• Standard Compliance: Fully compatible with ISO 18000-6C and EPC Gen2 protocols

• Weatherproof Design: IP65 or IP53 waterproof rating for outdoor use

• Durable ABS Enclosure: Robust housing for long-term reliability

• Multiple Mounting Options: Supports wall and pole mounting

• Connector Options: Available with TNC or SMA female connectors

• Wide Operating Temperature: -40°C to 60°C for extreme environments

This antenna is ideal for retail, warehouse inventory management, asset tracking, file management, access control, and various other RFID applications. Its combination of high gain, circular polarization, and weatherproof design makes it a reliable choice for enhancing the performance of any UHF RFID system.

 Applications:
902-928MHz RFID radio frequency identification system.
European standard (860-868MHz)
Logistics and warehousing management
Unmanned retail cabinet cargo management
Asset management and other systems are widely used.

 Antenna features:
Beautiful appearance, light weight, small size, easy installation; optional wall-mounted, magnet-adsorbed or pole-mounted installation
Suitable for metal cabinets with little environmental interference.
Sensitive reading speed and high stability

  Technical Features
