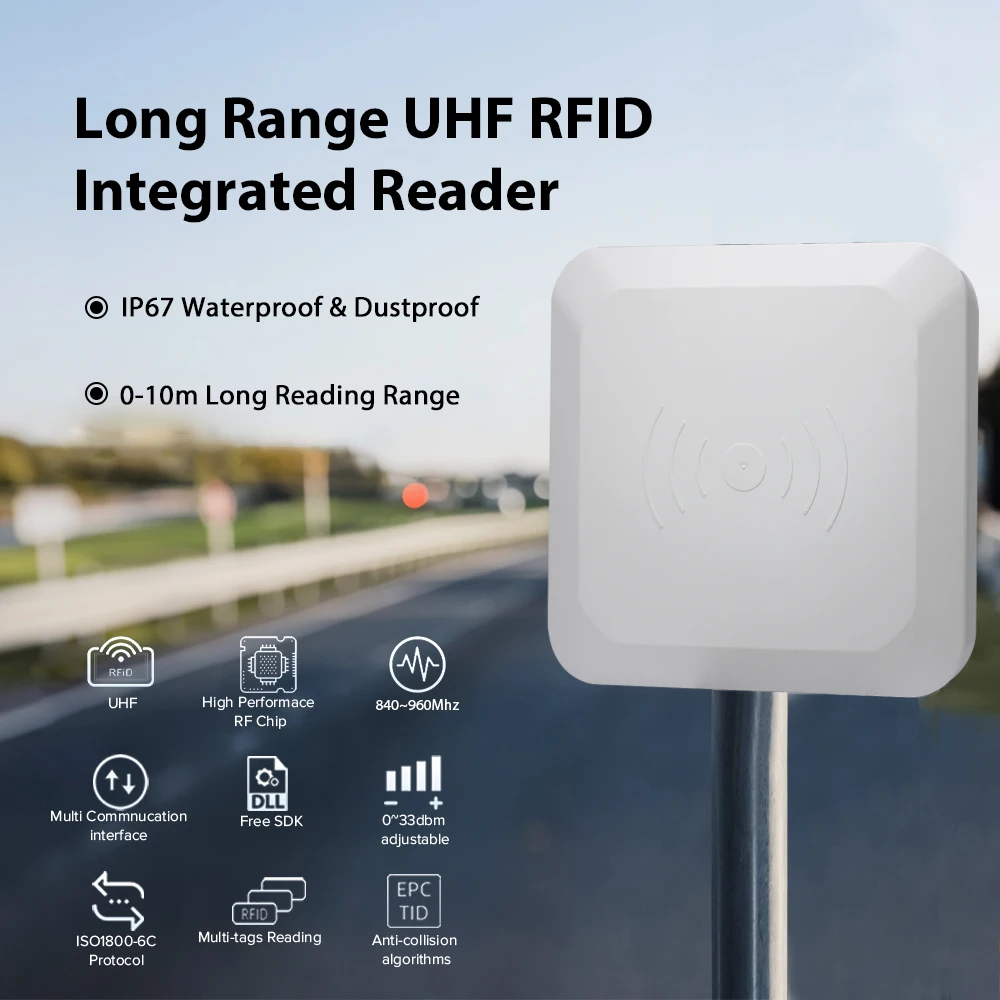

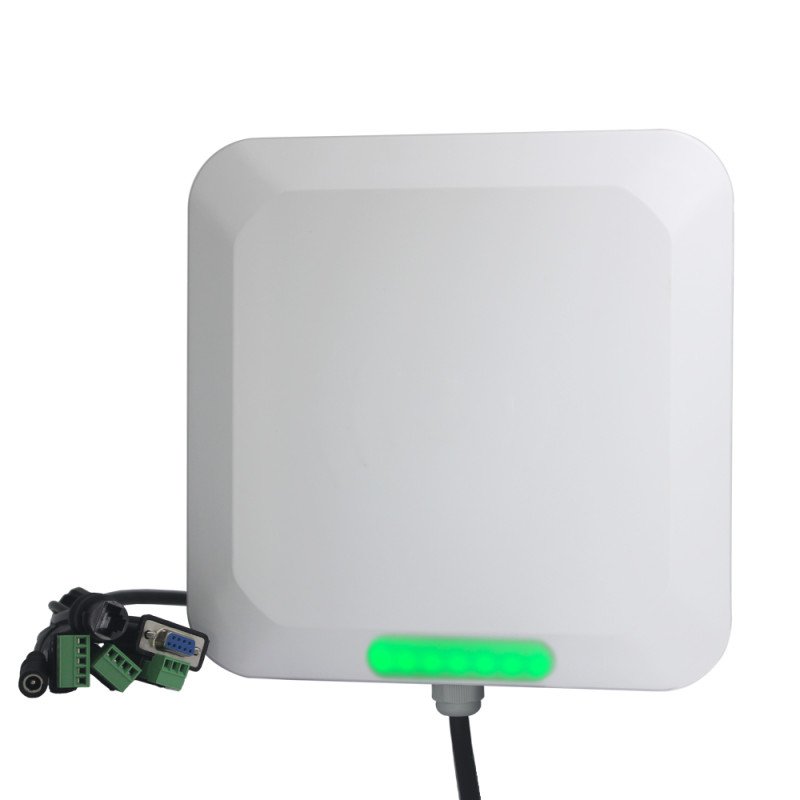

The Long Range Integrated UHF RFID Reader is a high-performance, fixed RFID读写器 engineered for demanding asset tracking, access control, and professional race timing applications. This versatile device combines an integrated 8dBi circular polarized antenna with a powerful RF module in a single, rugged ABS enclosure, delivering exceptional read range and reliable performance in diverse environments.

Operating across global UHF frequency bands including 902-928MHz (FCC) and 865-868MHz (ETSI), this reader ensures international compatibility. It fully complies with ISO/IEC 18000-6C, IEC18000-6B, and EPC C1Gen2 protocols, guaranteeing seamless integration with a wide variety of RFID tags and systems.

With an adjustable RF output power from 0 to 33dBm, the reader allows precise control over read range and performance, enabling optimization for different environments and use cases. The integrated 8dBi circular polarized antenna ensures consistent tag reading regardless of tag orientation, while the impressive 0-20 meter read range ensures efficient and reliable asset tracking even in large or complex settings.

Key Features & Specifications:

• Integrated High-Gain Antenna: Built-in 8dBi circular polarized antenna for extended range and orientation-insensitive reading

• Long Read Range: Reads tags from 0 to 20 meters, ensuring reliable performance in large-scale applications

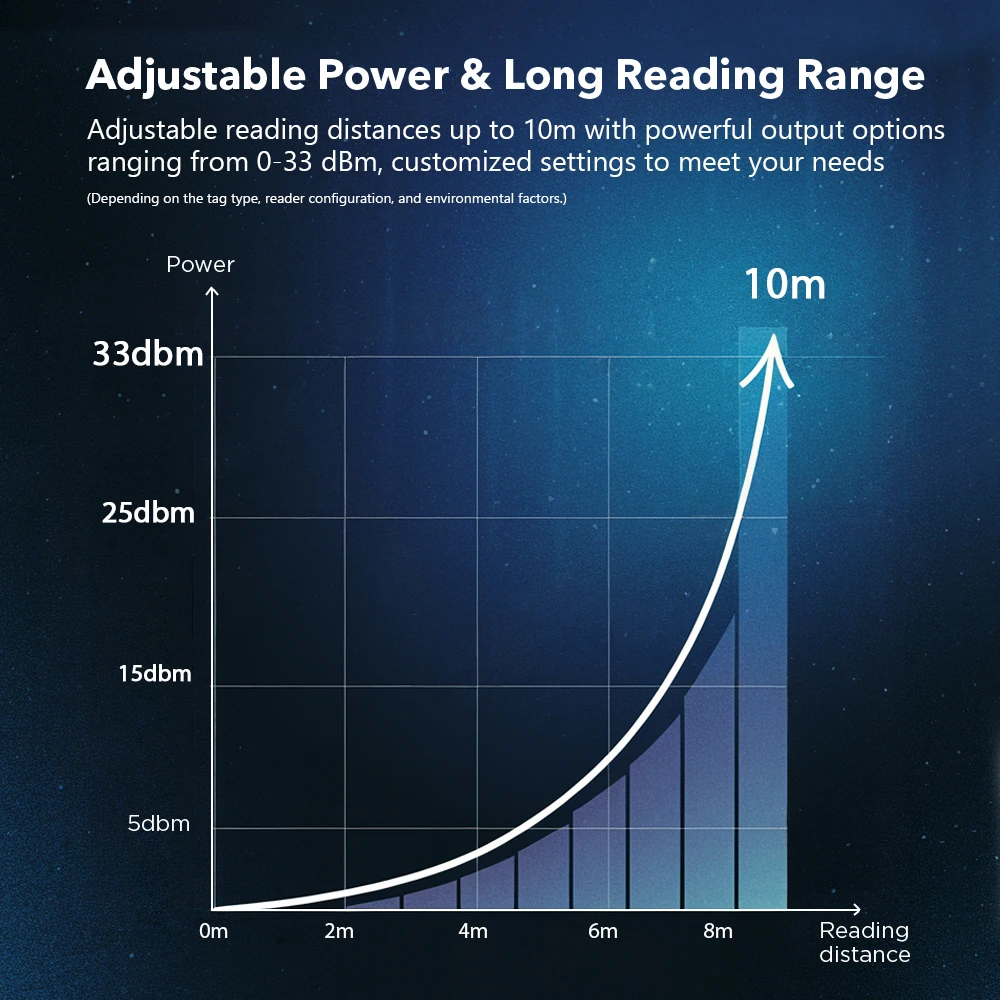

• Adjustable RF Output: 0 to 33dBm output power for precise read range control

• Global Frequency Support: Operates on 902-928MHz (FCC) and 865-868MHz (ETSI) bands

• Multiple Protocol Compliance: Supports ISO/IEC 18000-6C, IEC18000-6B, and EPC C1Gen2

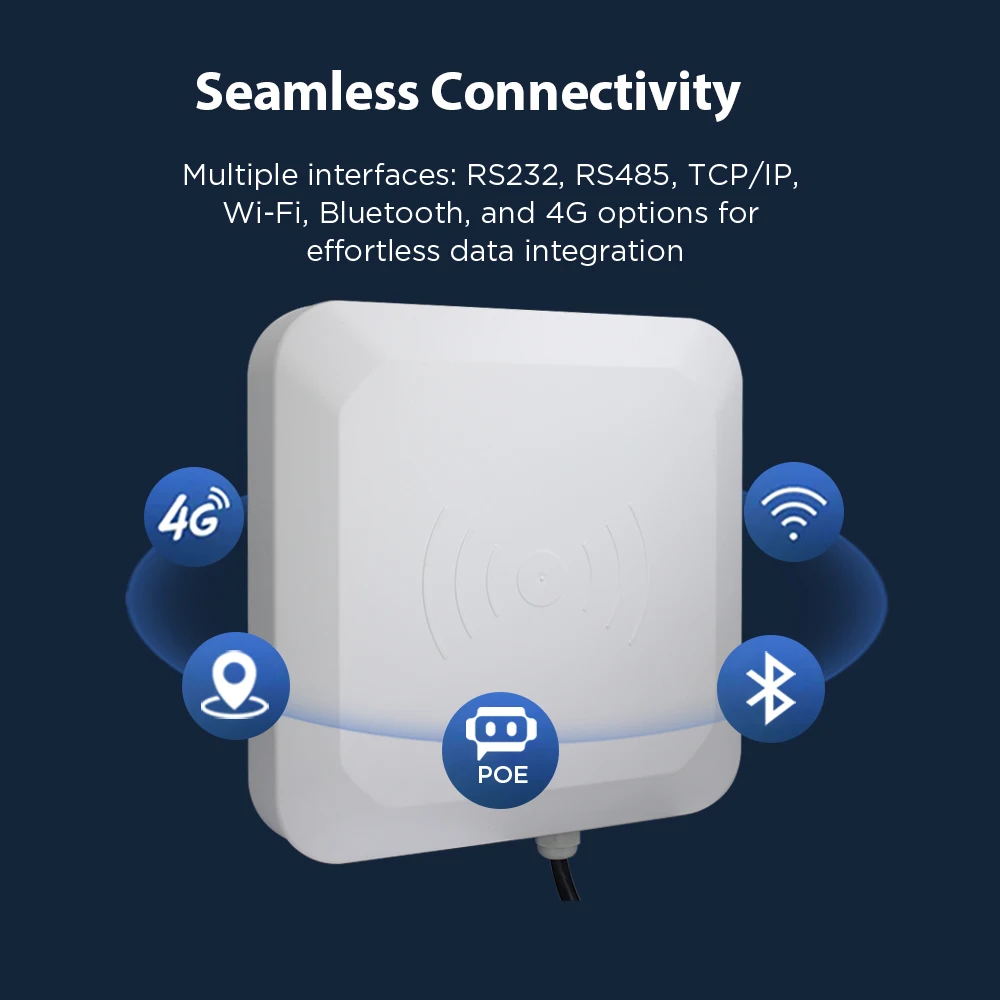

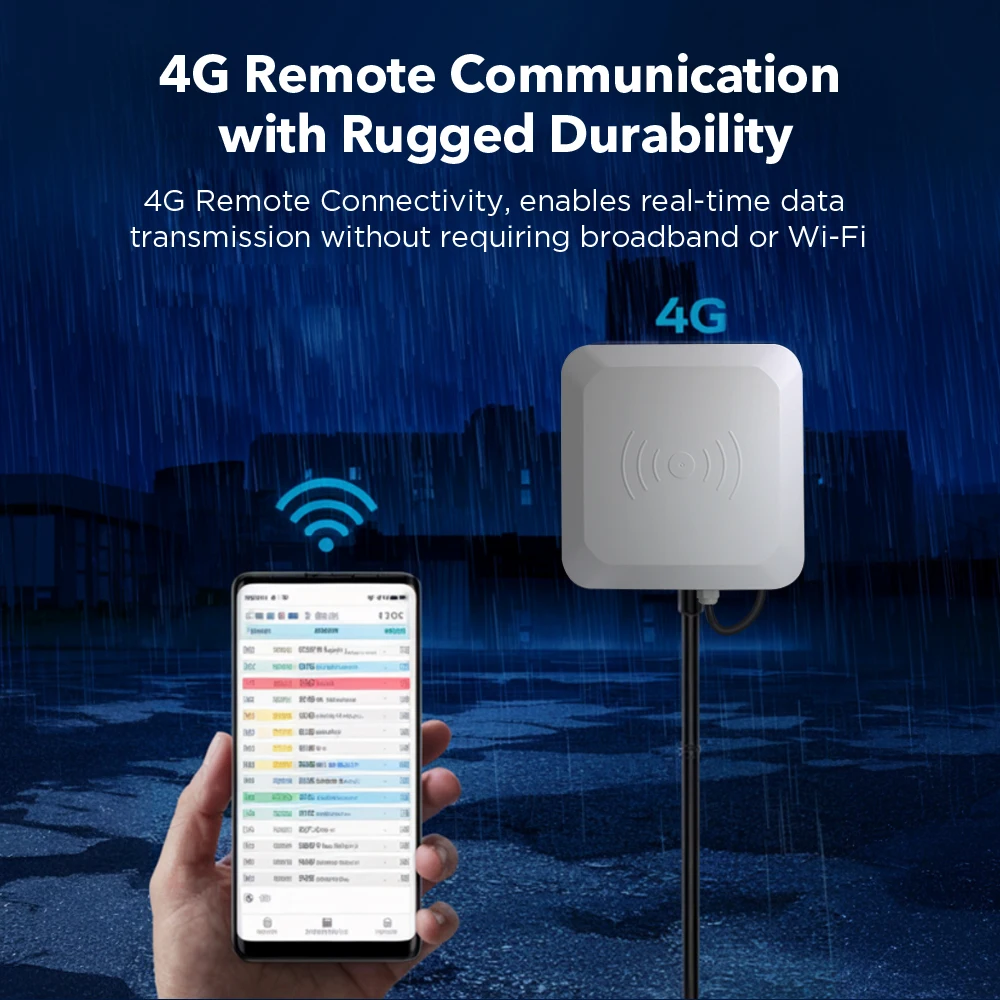

• Flexible Communication Interfaces: Standard RS-232 interface with optional RJ45, USB 2.0, and 4G connectivity

• Open SDK: Comprehensive software development kit for easy system integration and customization

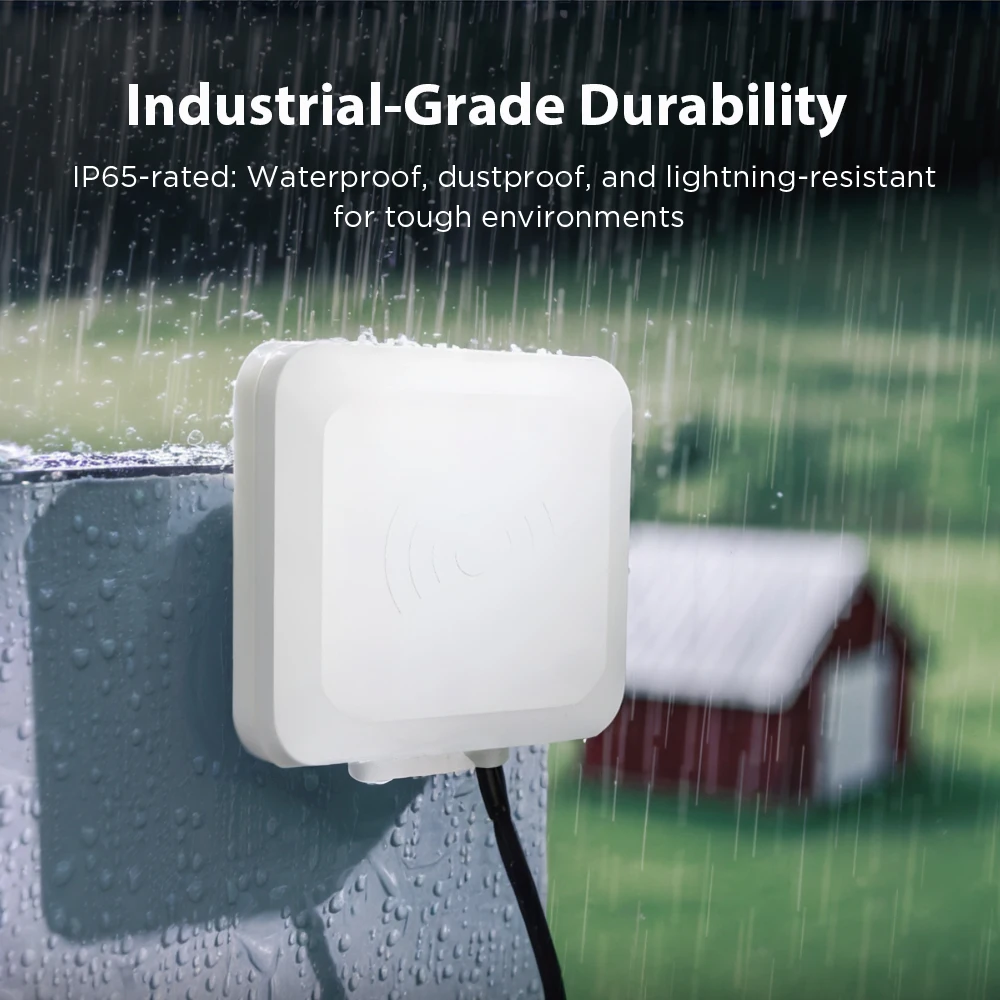

• Rugged Construction: Durable ABS plastic housing for reliable operation in demanding environments

• Compact Design: Measures 220×220×60mm with a weight of 1.65kg

• Wide Power Input: Supports DC 12-24V power supply

Versatile Applications:

• Asset Inventory & Management: Efficient tracking of high-value assets, tools, and equipment in warehouses and industrial facilities.

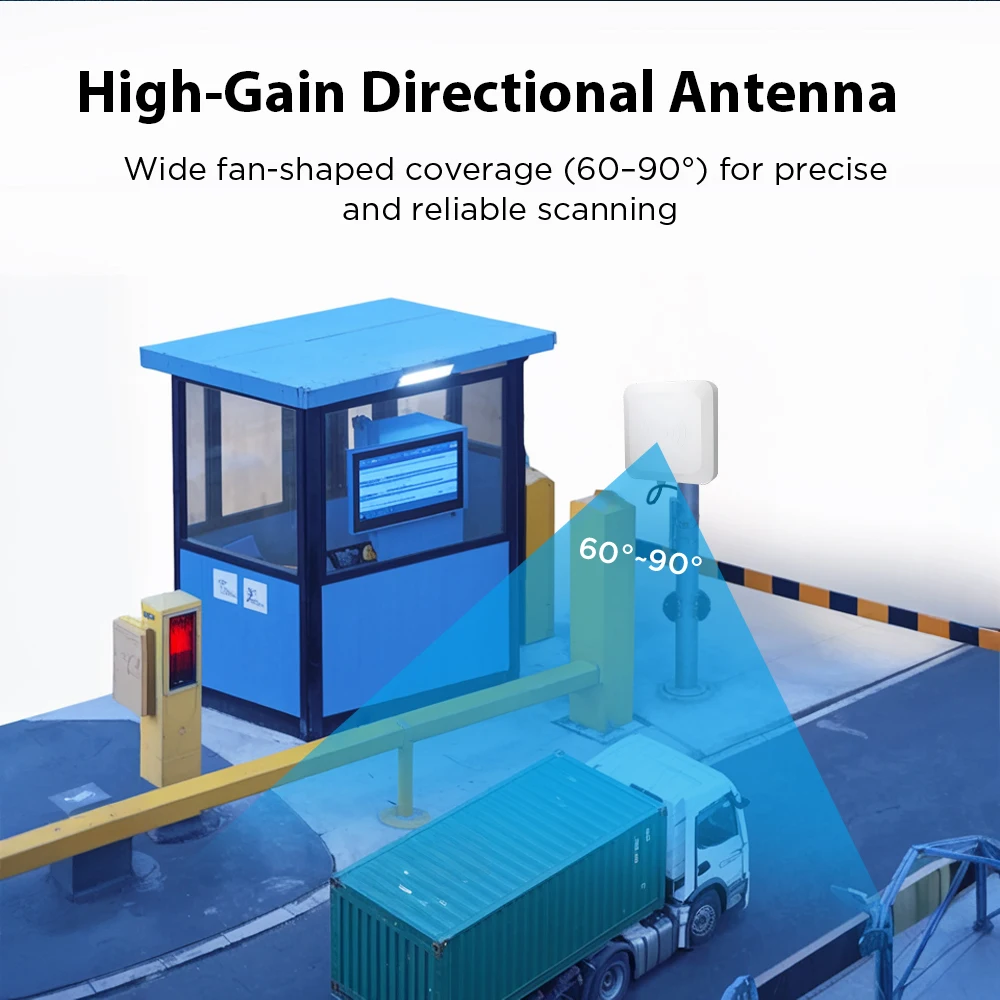

• Access Control Systems: Long-range identification for secure vehicle and personnel access in parking lots, gated communities, and corporate campuses.

• Marathon & Race Timing: Reliable, long-range detection for participant timing in marathons, cycling events, and other sporting competitions.

• Logistics & Supply Chain: Automated tracking of containers, pallets, and shipments.

• Vehicle Access Control: Gate automation and parking management systems.
