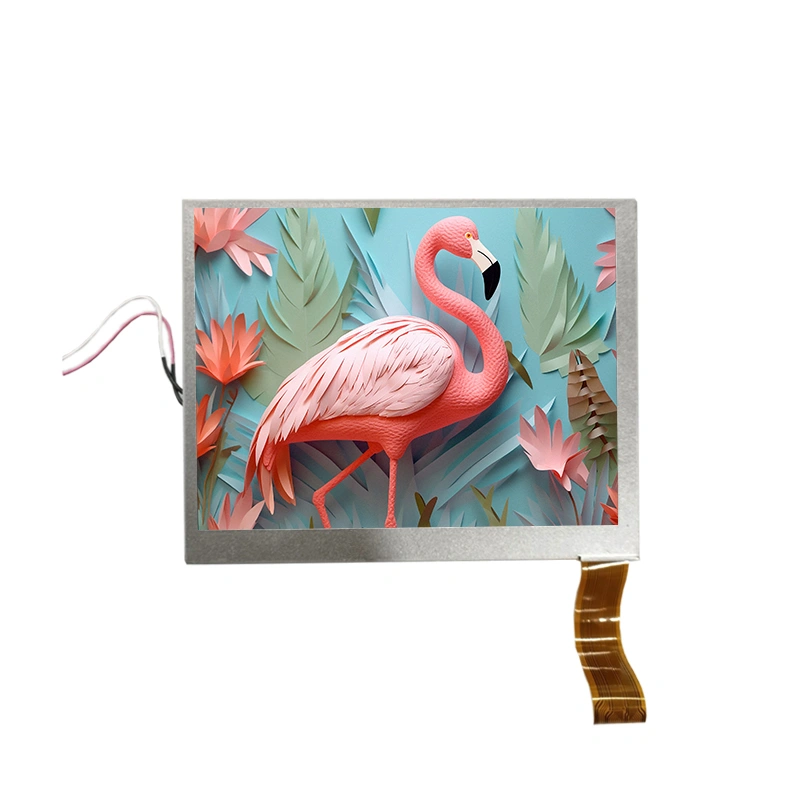

The 5.6 Inch 320×234 High Definition RGB Interface LCD Display Module is a high-performance, transmissive type color active matrix liquid crystal display (TFT-LCD) that utilizes amorphous silicon thin film transistor (a-Si TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC, and an LED backlight unit.

With a resolution of 320(RGB)×234 dots and a diagonal screen size of 5.6 inches, this display delivers clear and vibrant images with full color depth. The active area measures 113.28(H) × 84.708(V) mm with a pixel pitch of 0.118 × 0.362 mm. The module features compact outline dimensions of 126.5(W) × 100.0(H) × 5.7(D) mm.

Key Features:

• Resolution: 320(RGB) × 234 for clear QVGA-quality images

• Interface: Analog RGB for seamless system integration

• Technology Type: a-Si TFT for reliable performance

• Display Mode: Normally White, Transmissive

• Pixel Configuration: R.G.B. Vertical Stripe

• Viewing Direction: 12 o'clock

• Surface Treatment: Anti-Glare for reduced reflection

• LED Backlight: 14 LEDs for energy-efficient illumination

• Touch Panel: Without TSP (available upon request)

This LCD module is widely used in industrial equipment, medical devices, home intelligent devices, digital cameras, video game devices, and instruments where reliable, high-quality visual output is essential.
