The Industrial 12dBi Long Range RFID Reader is a high-performance, fixed UHF RFID读写器 engineered for demanding access control, warehouse management, and asset tracking applications. This powerful reader features an integrated 12dBi circular polarized antenna housed in a rugged Aluminum+ABS enclosure, delivering exceptional read range and reliable performance in challenging industrial environments.

Operating across global UHF frequency bands including 840-960MHz, with support for 865-868MHz (EU standard) and 902-928MHz (US standard), this reader ensures international compatibility. It fully complies with ISO/IEC 18000-6C, IEC18000-6B, and EPC C1Gen2 protocols, guaranteeing seamless integration with a wide variety of RFID tags and systems.

The reader features an adjustable RF output power from 0 to 33dBm, allowing precise control over read range and performance optimization for different environments. The integrated 12dBi circular polarized antenna ensures consistent tag reading regardless of tag orientation, while the impressive 0-25 meter read range ensures efficient and reliable asset tracking even in large or complex settings.

Key Features & Specifications:

• Integrated 12dBi Antenna: High-gain circular polarized antenna for extended range and orientation-insensitive reading

• Long Read Range: Reads tags from 0 to 25 meters, ensuring reliable performance in large-scale applications

• Adjustable RF Output: 0 to 33dBm output power for precise read range control

• Global Frequency Support: Operates on 840-960MHz, supporting 865-868MHz (EU) and 902-928MHz (US) bands

• Multiple Protocol Compliance: Supports ISO/IEC 18000-6C, IEC18000-6B, and EPC C1Gen2

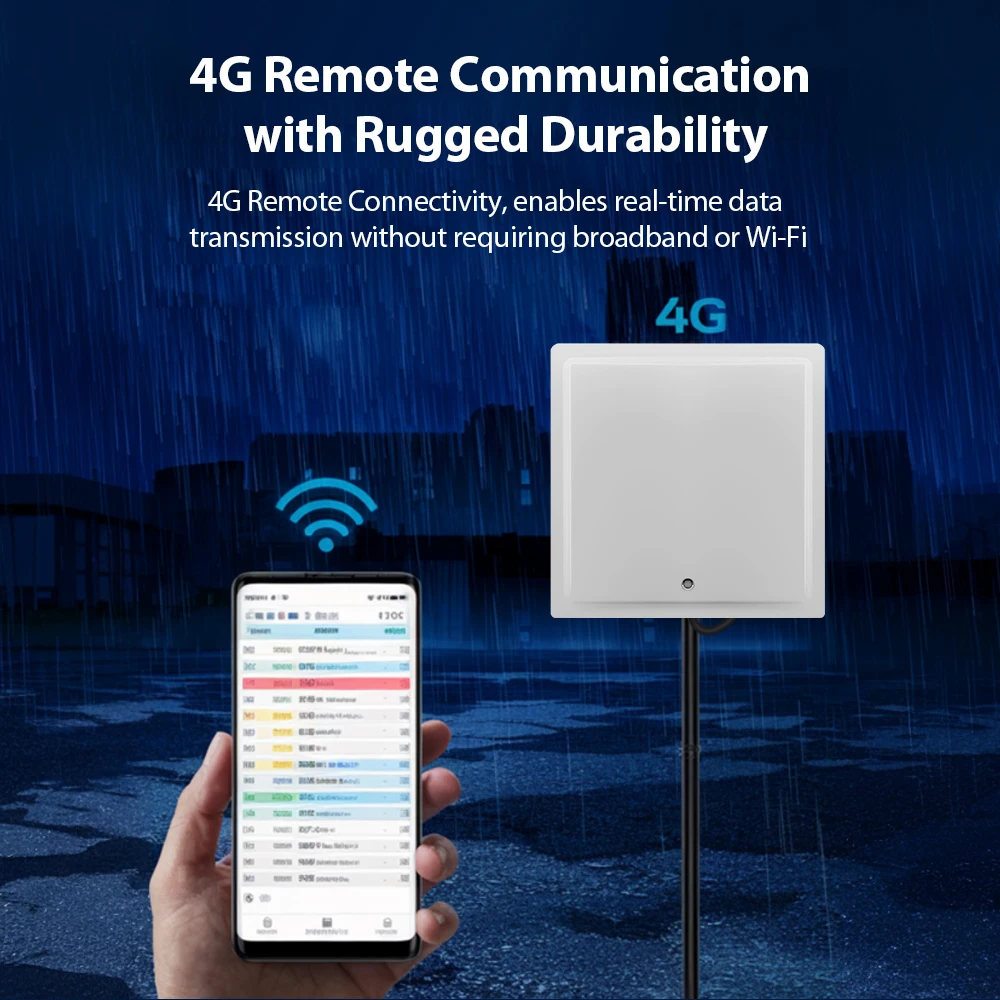

• Flexible Communication Interfaces: Standard RS-232 interface with optional RJ45, USB 2.0 (3 ports), and 4G connectivity

• Rugged Construction: Durable Aluminum+ABS housing for reliable operation in demanding environments

• Compact Design: Measures 445×445×68mm with a weight of 5.0kg

• Wide Power Input: Supports DC 12-24V power supply

• Customization Options: Supports OEM, ODM, and custom logo printing

Versatile Applications:

• Warehouse Management: Efficient tracking of inventory, pallets, and containers in large storage facilities

• Access Control Systems: Long-range identification for secure vehicle and personnel access in parking lots, gated communities, and corporate campuses

• Asset Tracking: Real-time monitoring of high-value assets, tools, and equipment

• Logistics & Supply Chain: Automated tracking of shipments and containers

• Vehicle Access Control: Gate automation and parking management systems
