LP24 Waterproof Industrial HDMI Panel Mount Connector IP67

Product Overview & Rugged Engineering

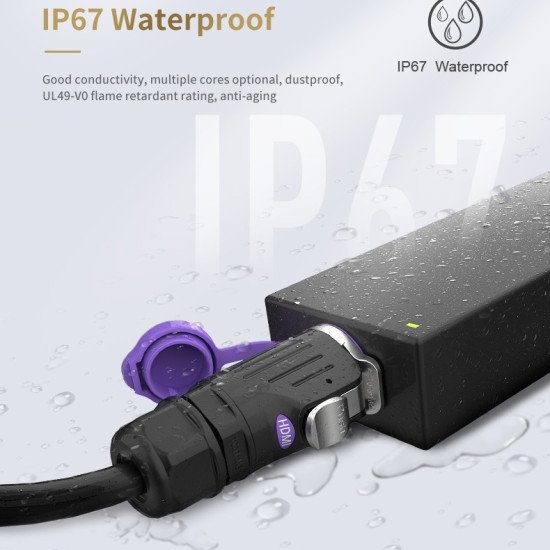

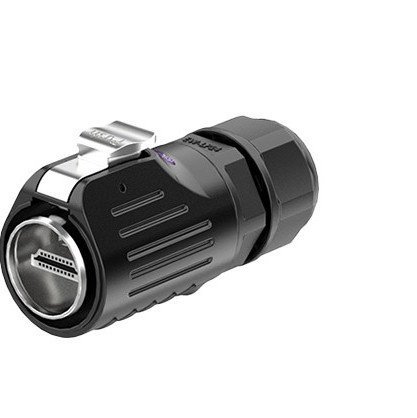

The LP24 HDMI Waterproof Aviation Panel Connector (EW-LP24S-3100B0B07 / EW-LP24L-31001) provides high-integrity digital audiovisual transmission in demanding outdoor and industrial environments. Engineered with a pass-through architecture, this connector preserves uncompressed high-definition video and multichannel audio signaling while providing full IP67 ingress defense against dust, moisture, and chemical exposure. Designed with a combined metal-alloy and high-performance engineering thermoplastic housing, it delivers optimal structural durability and shielding.

Technical Specifications & Signal Performance

Equipped with a standard 19-pin HDMI female-to-female feedthrough interface, the LP24 connector supports high-resolution AV formats including Full HD and 4K displays. Precision gold-plated contact points ensure minimal signal attenuation, low contact resistance, and long-term anti-oxidation performance. The integrated sealing ring accommodates cable outer diameters ranging from 5.0 mm to 7.0 mm, maintaining an impermeable seal under high-vibration conditions and continuous environmental stress.

Mechanical Construction & Ingress Protection

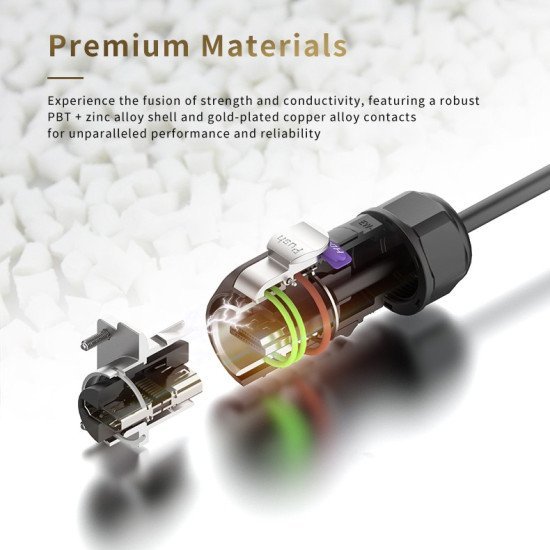

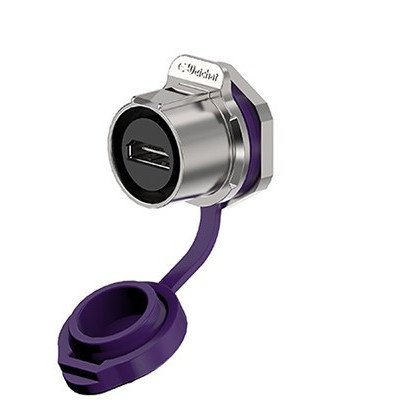

Constructed from rugged PBT polymer and corrosion-resistant zinc alloy hardware, the assembly exhibits flame-retardant properties and wide thermal endurance rated from -40°C to +80°C. The quick-locking bayonet panel coupling ensures dependable mechanical retention under severe vibration and physical shock. The panel-mount chassis integrates an elastomeric flange gasket to prevent liquid infiltration behind device enclosure surfaces.

Industrial Applications & Field Integration

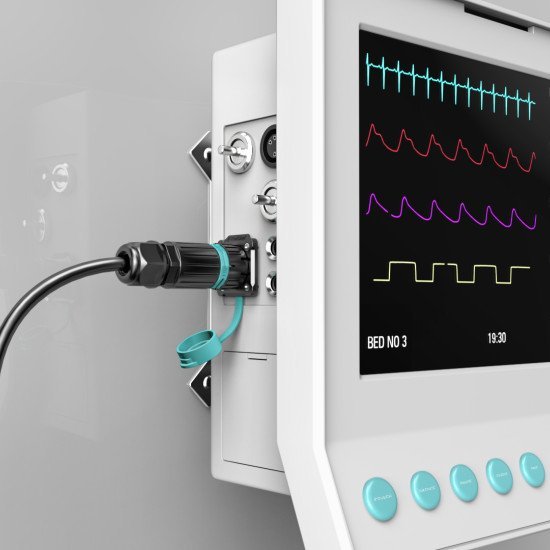

Engineered for high-reliability AV transport, the LP24-HDMI is suited for digital out-of-home (DOOH) LED displays, rugged outdoor staging, marine electronics, machine vision inspection arrays, edge computing vision systems, and avionics control consoles. The tool-free through-type configuration allows standard HDMI patch leads to connect securely on both sides of the panel wall without termination overhead.

Installation & Dimensional Compatibility

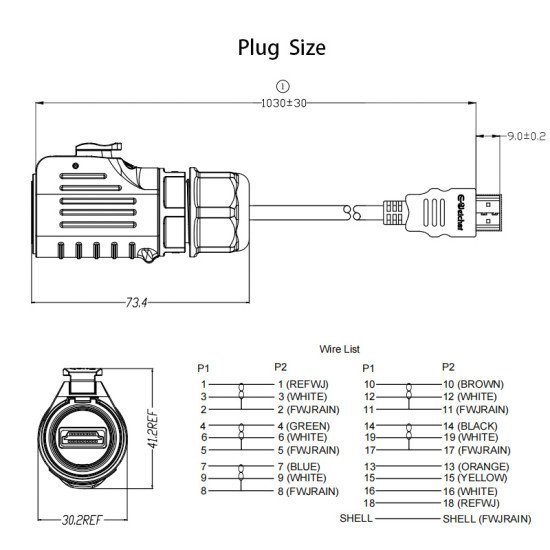

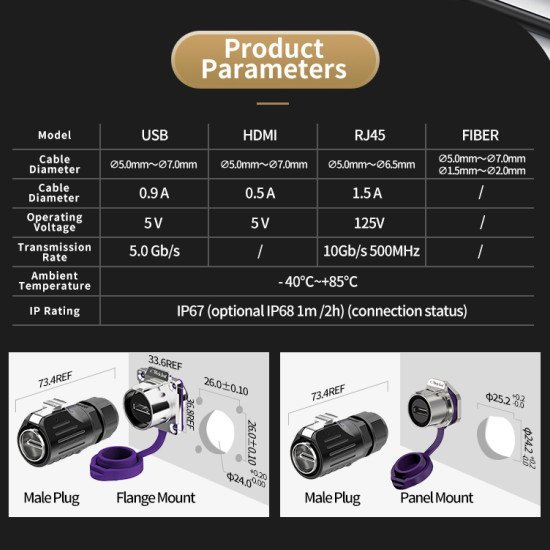

This panel-mount connector fits standard 24 mm mounting cutouts, securing tightly with standard 4-hole flange fasteners or retention nuts. Compatible with cable outer diameters between 5.0 mm and 7.0 mm via its precision compression grommet, it delivers repeatable IP67 mating cycles and reliable field serviceability.
