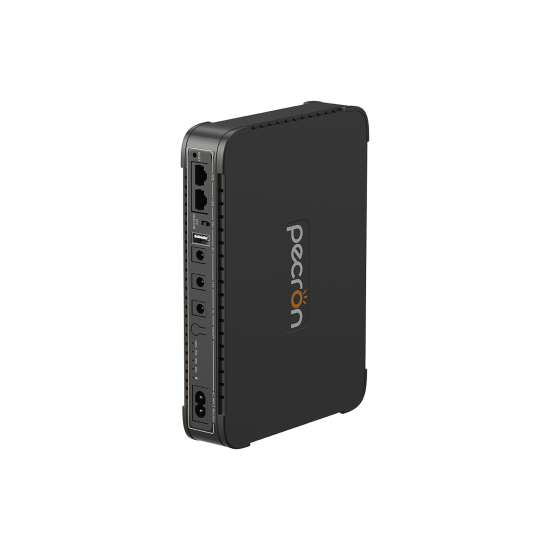

PECRON D39 76.96Wh Multi-Output Mini DC UPS with PoE

System Architecture & Power Continuity

The PECRON D39 Uninterruptible Power Supply (UPS) delivers zero-transfer-time DC and Power over Ethernet (PoE) backup engineered specifically for networking hardware, edge communication nodes, surveillance cameras, and smart IoT infrastructures. Featuring a high-density 76.96Wh integrated lithium-ion energy reserve, the D39 prevents system reboots, data loss, and hardware brownouts during severe utility drops or sustained electrical outages.

Multi-Rail DC & PoE Distribution Matrix

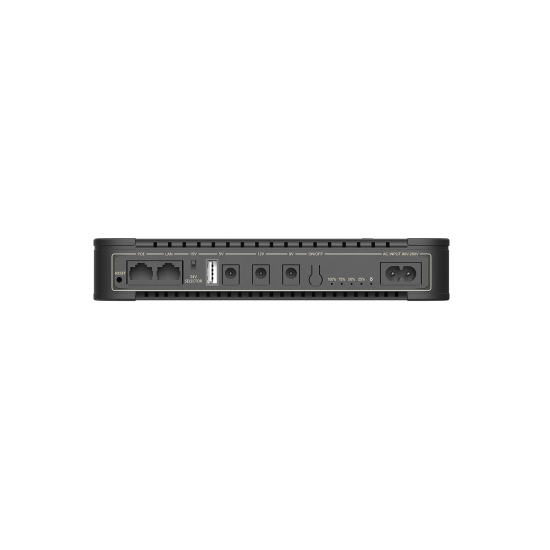

Engineered for multi-device peripheral compatibility, the PECRON D39 supplies concurrent regulated outputs tailored to telecom and smart home environments. Dedicated output ports support 5V at 2.6A, 9V at 2A, and 12V at 2A DC rails alongside a high-current USB-A output (5V 2.6A). A selectable 15V / 24V PoE injector interface powers wireless access points, VoIP terminals, and IP surveillance cameras directly through standard Ethernet cabling up to a cumulative 36W peak threshold.

Wide-Range AC Input & Thermal Management

Equipped with a wide-band switch-mode power converter accepting 80V to 260V AC at 50/60Hz, the system maintains ultra-stable power regulation in erratic line conditions. Advanced passive thermal engineering dissipates heat efficiently through a compact, flame-retardant structural enclosure without internal cooling fans, ensuring continuous, silent operation across an ambient operating envelope of 0°C to 45°C.

Integrated Battery Protection & Industrial Resilience

The embedded Battery Management System (BMS) incorporates multi-stage protection profiles, including over-voltage, over-current, short-circuit, over-discharge, and thermal cutoff safeguards. These protection barriers prolong cell lifecycle while isolating mission-critical edge equipment from damaging voltage transients and destructive line surges.
