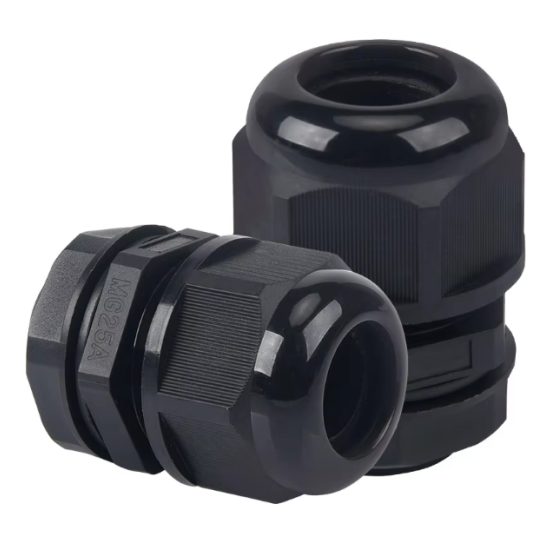

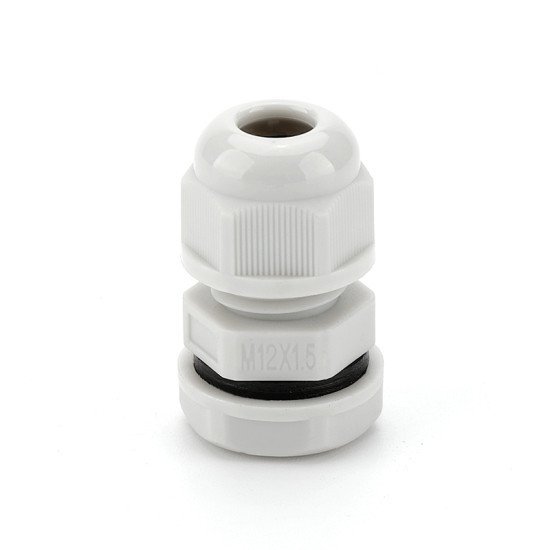

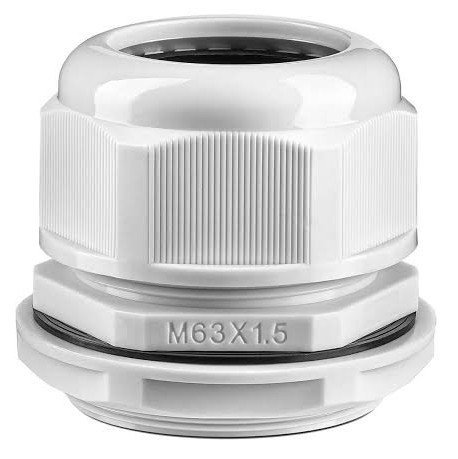

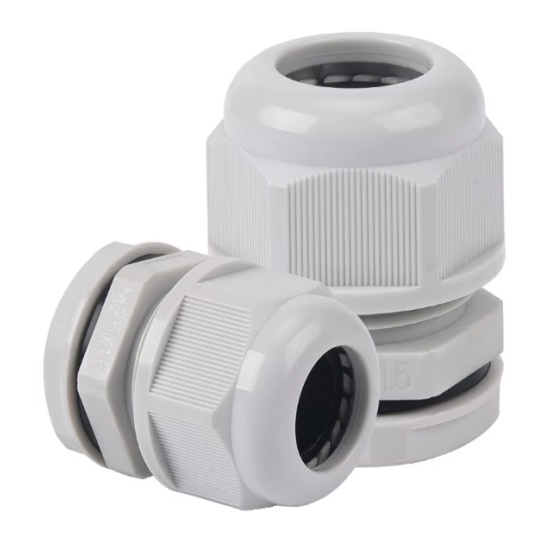

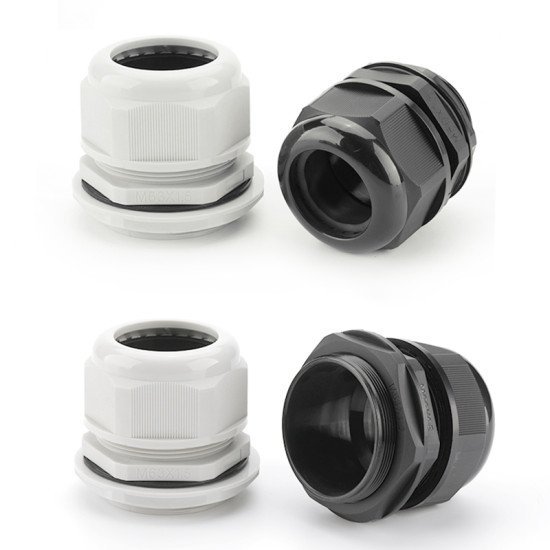

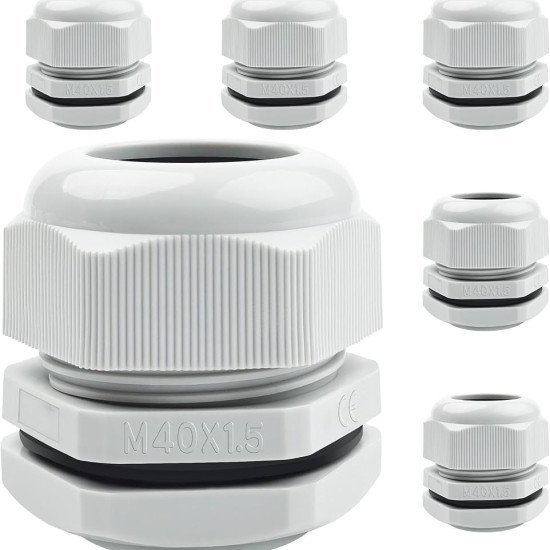

IP68 Waterproof Nylon Cable Gland M10-M63 Metric Cord Grip

Architectural Overview

Engineered for mission-critical industrial enclosures, control cabinets, and edge compute nodes, the Bantu Digital Nest IP68 Waterproof Nylon Cable Gland series delivers uncompromising strain relief and environmental sealing. Fabricated from high-tensile, flame-retardant Polyamide PA66, this modular metric cord grip eliminates mechanical conductor fatigue while securing electrical pass-throughs against severe environmental contamination.

Ingress Protection and Environmental Resilience

Rated to stringent IP68 submersible standards up to 5 bar, this connector integrates a vulcanized Nitrile Butadiene Rubber (NBR) internal seal and locknut O-ring. The resilient elastomeric assembly provides dynamic thermal adaptation, maintaining a hermetic barrier against high-pressure water jets, continuous immersion, abrasive dust, hydraulic oils, and volatile industrial chemicals across a thermal range of -40°C to +100°C.

Concentric Clamping Mechanics

Engineered with a flexible multi-claw collet architecture and internal anti-vibration ratchet threads, the gland applies uniform radial compression over the cable sheath. This design delivers exceptional pull-out retention and mechanical strain relief without deforming inner core conductors or compromising signal transmission fidelity across standard metric interfaces from M10 through M63.

Field Deployment Applications

Ideal for demanding edge-tier infrastructure including outdoor solar junctions, wind turbine nacelles, marine electronics, industrial automation distribution boxes, and harsh automotive chassis assemblies where persistent mechanical vibration and UV degradation threaten standard cabling junctions.

Technical Specifications

Body Material: High-grade Polyamide PA66 (UL 94V-2 rated)
Seal Material: Heavy-duty NBR O-ring and internal compression insert
Ingress Rating: IP68 (hermetic up to 5 bar / 50 meters)
Thread Standard: ISO Metric (compatible across M10 to M63 formats)
Operating Temperature: -40°C to +100°C continuous, +120°C intermittent
