Name: Industrial Switching Power Supply Series (50W - 600W)
SKU: 49
Price: 1800.00 KES
Availability: InStock

Industrial Switching Power Supply Series (50W - 600W)

New

Description

Product Overview
Engineered for industrial automation, high-power LED installations, and precision embedded systems, the BDN Multi-Range AC-DC Regulated Switching Power Supply series delivers high-efficiency power conversion across 50W to 600W configurations. Designed to operate reliably under variable mains electrical conditions, this robust power platform features wide AC dual-voltage tolerance with low ripple, low noise, and integrated line filtering.

Key Specifications & Variant Matrix
Input Voltage Range: 100-240V AC universal or 110V/220V AC ±15% manual switchable selection (50/60Hz). Available DC Output Configurations: 5V DC at 10A (50W), 12V DC at 10A (120W), 12V DC at 15A (180W), and 12V DC at 50A (600W). Load Regulation: ±1.0%. Voltage Tolerance: ±1.0%. High conversion efficiency up to 88% nominal.

Available List of items

DC Output: 5V 10A (50W)

12V 10A (120W)

12V 15A (180W)

12V 50A (600W)

Integrated Hardware Protection
Each unit incorporates comprehensive multi-stage circuit defense including active output over-voltage clamping (OVP), foldback over-current protection (OCP), automatic-recovery short-circuit protection (SCP), and input surge suppression. Visual operational status is continuously indicated via a primary output LED diagnostic indicator.

Thermal & Mechanical Architecture
Constructed inside a perforated, corrosion-resistant aluminum mesh chassis optimized for passive convection airflow and rapid thermal dissipation. The heavy-duty terminal block array features protective safety covers and screw-clamp retention rated for continuous duty in demanding industrial and telecommunications deployments.

Target Applications
Ideal for high-density LED signage, machine vision systems, 3D printers, CNC control boards, industrial PLCs, telecommunication relays, and modular edge computing power distribution racks.

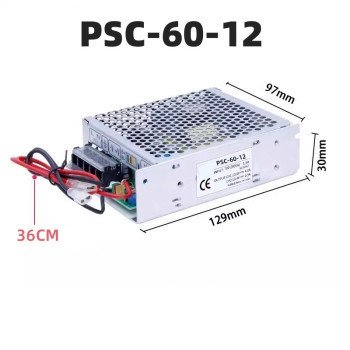

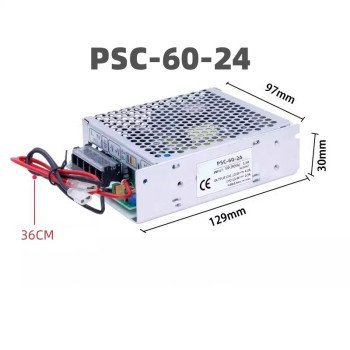

PSC-60 UPS/Charge Function Switching Power Supply
Project		Technical indicators
Model		PSC-60-12		PSC-60-24
Output	DC voltage	CH1:13.8V	CH2:13.8V	CH1:27.6V	CH2 :27.6V
	Output voltage tolerance	±1%	——–	±1%	——–
	Rated current	3.5A	1A(Charge)	1.5A	0.7A(Charge)
	Ripple and noise	150mVp-p	——-	200mVp-p	——–
	rated power	60W		60W
	Output current range	0-4.5A	——–	0-4.5A	——-
	DC voltage adjustable range	CH1:11.3-14.9V		CH1:21.3-29.8V
	Start,rise,hold time	600ms、50ms、80ms:230VAC , 1200ms、50ms、16ms:115VAC		600ms、50ms、80ms:230VAC, 1200ms、50ms、16ms:115VAC
Input	voltage range	90-264VAC 47-63HZ;135VDC~370VDC
	Efficiency(typical)	>88%	>88%	>88%	>88%
	Working current	115VAC<1.8A ,230VAC <0.9A
	pulse current	110VAC 25A,230VAC 40A
	Start,rise,hold time	100ms、30ms、21ms:110VAC ,100ms、30ms、100ms: 220VAC
Protect	Overload protection	When the output rated power is>105%-115%:Protection mode: hiccup mode,it can automatically recover after the abnormal conditions are removed.
	Battery low voltage protection	9.5~10.3V,Protection mode,cut off output		19~20.5V,Protection mode,cut off output
Environment	Working temperature, humidity	-20C~+60°℃,20%~90RH
	Storage temperature and humidity	-20C~+85℃,10%~95RH
Function	UPS	Long-term online float charging of the battery,high charging efficiency,battery fullness can be as high as 97% or more
		Automatically stops when fully charged to prevent battery overcharging and effectively extend battery life
		Automatic mains/battery switching,no switching time,no need for human supervision.
		Cold start function,when there is no mains power,the UPS can be started directly with the battery to meet the user’s emergency needs
Safety regulations	Protection mode,cut off output	Input and output:1.5KVAC,1 minute
	solation resistor	Input and output,input shell,output shell:500VDC/100MQ
Other	size	1299730mm
	Net weight/gross weight	0.38KG/0.42KG

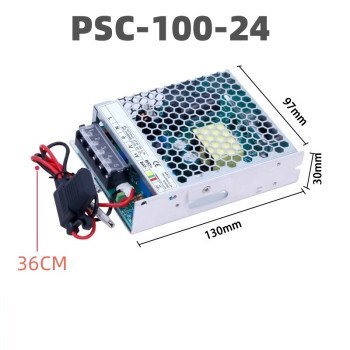

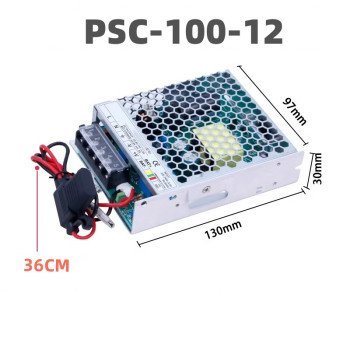

PSC-100 UPS/Charge Function Switching Power Supply
Project		Technical indicators
Model		PSC-100-12		PSC-100-24
Output	DC voltage	CH1:13.8V	CH2:13.8V	CH1:27.6V	CH2 :27.6V
	Output voltage tolerance	±1%	——–	±1%	——–
	Rated current	5A	2A(Charge)	2.5A	1A(Charge)
	Ripple and noise	150mVp-p	——-	200mVp-p	——–
	rated power	100W		100W
	Output current range	0-7A	——–	0-3.5A	——-
	DC voltage adjustable range	CH1:11.3-14.9V		CH1:21.3-29.8V
	Start,rise,hold time	600ms、50ms、80ms:230VAC , 1200ms、50ms、16ms:115VAC		600ms、50ms、80ms:230VAC, 1200ms、50ms、16ms:115VAC
Input	voltage range	90-264VAC 47-63HZ;135VDC~370VDC
	Efficiency(typical)	>87%	>87%	>87%	>87%
	Working current	115VAC<2.4A ,230VAC <1.2A
	pulse current	110VAC 30A,230VAC 50A
	Start,rise,hold time	100ms、30ms、21ms:110VAC ,100ms、30ms、100ms: 220VAC
Protect	Overload protection	When the output rated power is>105%-115%:Protection mode: hiccup mode,it can automatically recover after the abnormal conditions are removed.
	Battery low voltage protection	9.5~10.3V,Protection mode,cut off output		19~20.5V,Protection mode,cut off output
Environment	Working temperature, humidity	-20C~+60°℃,20%~90RH
	Storage temperature and humidity	-20C~+85℃,10%~95RH
Function	UPS	Long-term online float charging of the battery,high charging efficiency,battery fullness can be as high as 97% or more
		Automatically stops when fully charged to prevent battery overcharging and effectively extend battery life
		Automatic mains/battery switching,no switching time,no need for human supervision.
		Cold start function,when there is no mains power,the UPS can be started directly with the battery to meet the user’s emergency needs
Safety regulations	Protection mode,cut off output	Input and output:1.5KVAC,1 minute
	solation resistor	Input and output,input shell,output shell:500VDC/100MQ
Other	size	1299730mm
	Net weight/gross weight	0.38KG/0.42KG

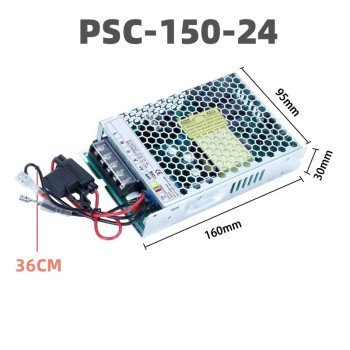

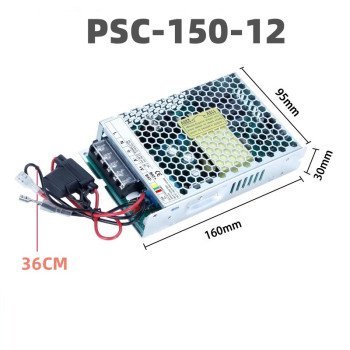

PSC-150 UPS/Charge Function Switching Power Supply
Project		Technical indicators
Model		PSC-150-12		PSC-150-24
Output	DC voltage	CH1:13.8V	CH2:13.8V	CH1:27.6V	CH2 :27.6V
	Output voltage tolerance	±1%	——–	±1%	——–
	Rated current	7.5A	3A(Charge)	4A	1.5A(Charge)
	Ripple and noise	150mVp-p	——-	200mVp-p	——–
	rated power	150W		152W
	Output current range	0-10.5A	——–	0-5.5A	——-
	DC voltage adjustable range	CH1:11.3-14.9V		CH1:21.3-29.8V
	Start,rise,hold time	600ms、50ms、80ms:230VAC , 1200ms、50ms、16ms:115VAC		600ms、50ms、80ms:230VAC, 1200ms、50ms、16ms:115VAC
Input	voltage range	90-264VAC 47-63HZ;135VDC~370VDC
	Efficiency(typical)	>87%	>87%	>89%	>89%
	Working current	115VAC<3.2A ,230VAC <1.6A
	pulse current	110VAC 30A,230VAC 50A
Protect	Overload protection	When the output rated power is>105%-115%:Protection mode: hiccup mode,it can automatically recover after the abnormal conditions are removed.
	Battery low voltage protection	9.5~10.3V,Protection mode,cut off output		19~20.5V,Protection mode,cut off output
Environment	Working temperature, humidity	-20C~+60°℃,20%~90RH
	Storage temperature and humidity	-20C~+85℃,10%~95RH
Function	UPS	Long-term online float charging of the battery,high charging efficiency,battery fullness can be as high as 97% or more
		Automatically stops when fully charged to prevent battery overcharging and effectively extend battery life
		Automatic mains/battery switching,no switching time,no need for human supervision.
		Cold start function,when there is no mains power,the UPS can be started directly with the battery to meet the user’s emergency needs
Safety regulations	Protection mode,cut off output	Input and output:1.5KVAC,1 minute
	solation resistor	Input and output,input shell,output shell:500VDC/100MQ
Other	size	1599730mm
	Net weight/gross weight	0.47KG/0.55KG

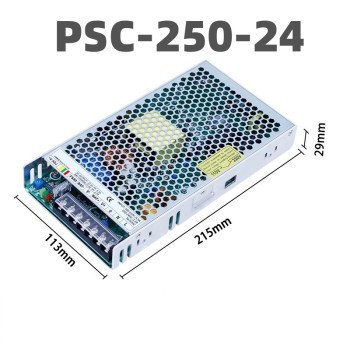

PSC-250 UPS/Charge Function Switching Power Supply
Project		Technical indicators
Model		PSC-250-12		PSC-250-24
Output	DC voltage	CH1:13.8V	CH2:13.8V	CH1:27.6V	CH2 :27.6V
	Output voltage tolerance	±1%	——–	±1%	——–
	Rated current	14.5A	3.5A(Charge)	6.5A	2.5A(Charge)
	Ripple and noise	150mVp-p	——-	200mVp-p	——–
	rated power	250W		250W
	Output current range	0-18A	——–	0-9A	——-
	DC voltage adjustable range	CH1:11.3-14.9V		CH1:21.3-29.8V
	Start,rise,hold time	600ms、50ms、80ms:230VAC , 1200ms、50ms、16ms:115VAC		600ms、50ms、80ms:230VAC, 1200ms、50ms、16ms:115VAC
Input	voltage range	90-264VAC 47-63HZ;135VDC~370VDC
	Efficiency(typical)	>87%	>87%	>89%	>89%
	Working current	115VAC<4.5A ,230VAC <2.5A
	pulse current	110VAC 45A,230VAC 55A
Protect	Overload protection	When the output rated power is>105%-115%:Protection mode: hiccup mode,it can automatically recover after the abnormal conditions are removed.
	Battery low voltage protection	9.5~10.3V,Protection mode,cut off output		19~20.5V,Protection mode,cut off output
Environment	Working temperature, humidity	-20C~+60°℃,20%~90RH
	Storage temperature and humidity	-20C~+85℃,10%~95RH
Function	UPS	Long-term online float charging of the battery,high charging efficiency,battery fullness can be as high as 97% or more
		Automatically stops when fully charged to prevent battery overcharging and effectively extend battery life
		Automatic mains/battery switching,no switching time,no need for human supervision.
		Cold start function,when there is no mains power,the UPS can be started directly with the battery to meet the user’s emergency needs
Safety regulations	Protection mode,cut off output	Input and output:1.5KVAC,1 minute
	solation resistor	Input and output,input shell,output shell:500VDC/100MQ
Other	size	21511530mm
	Net weight/gross weight	0.75KG/0.82KG

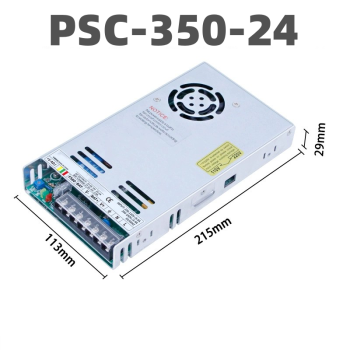

PSC-350 UPS/Charge Function Switching Power Supply
Project		Technical indicators
Model		PSC-350-12		PSC-350-24
Output	DC voltage	CH1:13.8V	CH2:13.8V	CH1:27.6V	CH2 :27.6V
	Output voltage tolerance	±1%	——–	±1%	——–
	Rated current	20A	5A(Charge)	10A	2.5A(Charge)
	Ripple and noise	150mVp-p	——-	200mVp-p	——–
	rated power	345W		350W
	Output current range	0-18A	——–	0-9A	——-
	DC voltage adjustable range	CH1:11.3-14.9V		CH1:21.3-29.8V
	Start,rise,hold time	600ms、50ms、80ms:230VAC , 1200ms、50ms、16ms:115VAC		600ms、50ms、80ms:230VAC, 1200ms、50ms、16ms:115VAC
Input	voltage range	90-264VAC 47-63HZ;135VDC~370VDC
	Efficiency(typical)	>87%	>87%	>89%	>89%
	Working current	115VAC<6.5A ,230VAC <3.5A
	pulse current	110VAC 45A,230VAC 55A
Protect	Overload protection	When the output rated power is>105%-115%:Protection mode: hiccup mode,it can automatically recover after the abnormal conditions are removed.
	Battery low voltage protection	9.5~10.3V,Protection mode,cut off output		19~20.5V,Protection mode,cut off output
Environment	Working temperature, humidity	-20C~+60°℃,20%~90RH
	Storage temperature and humidity	-20C~+85℃,10%~95RH
Function	UPS	Long-term online float charging of the battery,high charging efficiency,battery fullness can be as high as 97% or more
		Automatically stops when fully charged to prevent battery overcharging and effectively extend battery life
		Automatic mains/battery switching,no switching time,no need for human supervision.
		Cold start function,when there is no mains power,the UPS can be started directly with the battery to meet the user’s emergency needs
Safety regulations	Protection mode,cut off output	Input and output:1.5KVAC,1 minute
	solation resistor	Input and output,input shell,output shell:500VDC/100MQ
Other	size	21511530mm
	Net weight/gross weight	0.85KG/0.95KG
